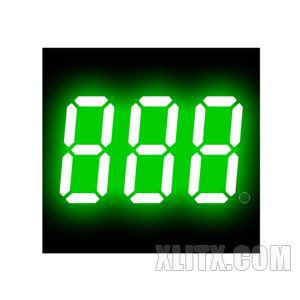

3301BGG - 0.30-inch Green 3-Digit CA LED 7-Segment Display

Price:
US $1.03 100 Pieces
US $0.75 500 Pieces
US $0.72 1000 Piece
Shipping: DHL / Fedex free shipping
Ships out within 5 days
Payment:

Product Description

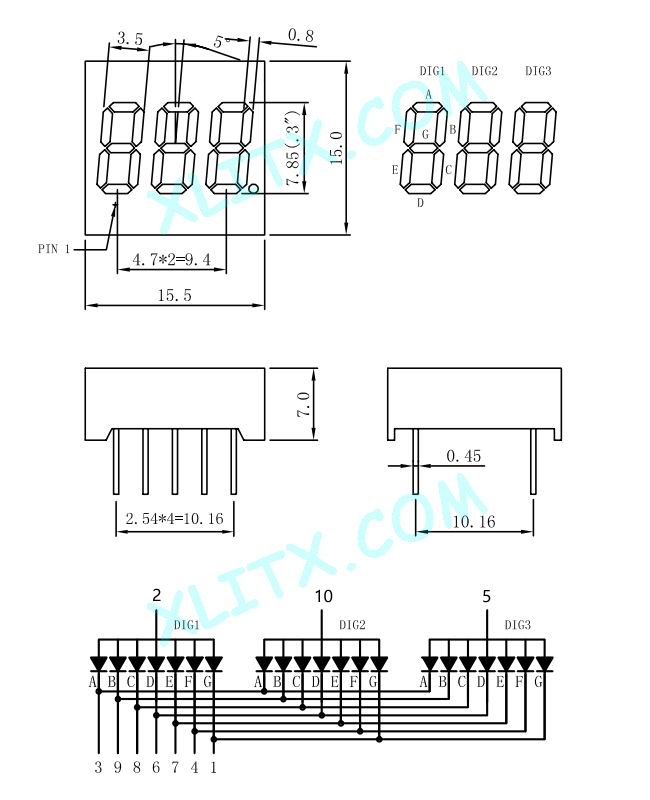

Model: 3301BGG
Size: 0.30-inch
Emitting color: Green
Mode: Common-Anode (CA)
Digit: 3-Digit
Category: LED 7-Segment Display
Maker: XLITX TECHNOLOGY





1. Electro-Optical Characteristics(Ta=25℃)



PARAMETERSYMBOLDEVICES
(Green)
UNITTEST CONDIONS
TYPMAX
Peak Emission Wavelengrthλp525nmIF=10mA
Forward VoltageVF3.5VIF=10mA
Reverse CurrentIR50μAVR=5V
Segment To Segment (Dot To Dot)
Luminonous Intensity Ratio
IV-M1.5:1IF=20



2. Absolute Maximun Ratings(Ta=25℃)



PARAMETERSYMBOLDEVICES
(Green)
UNIT
Power Dissipation Per Dicepad52.5mw
Derating Linear From 25℃ Per Dice0.27mA/℃
Continuous Forward Current Per Dicelaf25mA
Peak Forward Ourrent Per Dice
(Duty Cycle 1/10,10KHz)
lpf80mA
Reverse Voltage Per DiceVr5V
Operating TemperatureTopr-20℃ (to) +75℃
Storage TemperatureTstg-20℃ (to) +85℃
Solder Temperature1.6Inch Below Seating Place for
5 seconds at 230℃



3. Electro-Optical Curve
