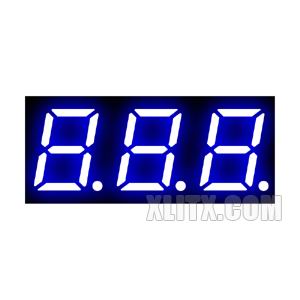

3391AB - 0.39-inch Blue 3-Digit CC LED 7-Segment Display

Price:
US $0.79 100 Pieces
US $0.48 500 Pieces
US $0.45 1000 Piece
Shipping: DHL / Fedex free shipping
Ships out within 5 days
Payment:

Product Description

Model: 3391AB
Size: 0.39-inch
Emitting color: Blue
Mode: Common-Cathode (CC)
Digit: 3-Digit
Category: LED 7-Segment Display
Maker: XLITX TECHNOLOGY





1. Electro-Optical Characteristics(Ta=25℃)



PARAMETERSYMBOLDEVICES
(Blue)
UNITTEST CONDIONS
TYPMAX
Peak Emission Wavelengrthλp470nmIF=10mA
Forward VoltageVF3.5VIF=10mA
Reverse CurrentIR50μAVR=5V
Segment To Segment (Dot To Dot)
Luminonous Intensity Ratio
IV-M1.5:1IF=20



2. Absolute Maximun Ratings(Ta=25℃)



PARAMETERSYMBOLDEVICES
(Blue)
UNIT
Power Dissipation Per Dicepad70mw
Derating Linear From 25℃ Per Dice0.27mA/℃
Continuous Forward Current Per Dicelaf30mA
Peak Forward Ourrent Per Dice
(Duty Cycle 1/10,10KHz)
lpf100mA
Reverse Voltage Per DiceVr5V
Operating TemperatureTopr-20℃ (to) +75℃
Storage TemperatureTstg-20℃ (to) +85℃
Solder Temperature1.6Inch Below Seating Place for
5 seconds at 230℃



3. Electro-Optical Curve
